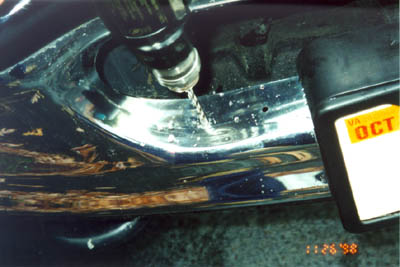

This page will show the basic installation of Hi-Power Halogen Driving Lights from Rally�s Racing Series.  I don�t really follow instructions when doing these things so, don�t do what I did, read and follow your instructions.  First thing I did was decide where they go, then I drilled two holes for the mounting bracket as shown in the picture.

Once the holes were drilled I mounted the mounts using the nuts and bolts provided with the kit.

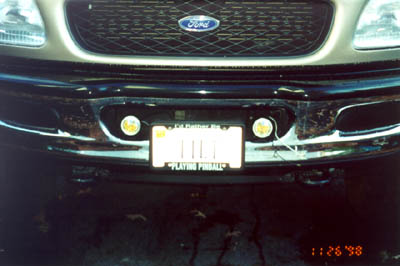

This is what the installed lights looked like.  At the time of this picture, I didn�t have the wiring completed.  For the wiring, I grounded the lights directly to the mounts and then ran a wire into the cab to the switch and then ran from the fuse box to the switch.  I used a slip in connector and placed it in the same spot with a 30 amp fuse.  When I want lights I just flip the switch.

Note:  This installation does not turn off the lights when the high beams come on.  I normally wire lights up to come on with the parking lights but it looked like it was just going to be too much work.

Please contact me with questions or comments.
